110-03400 | HellermannTyton

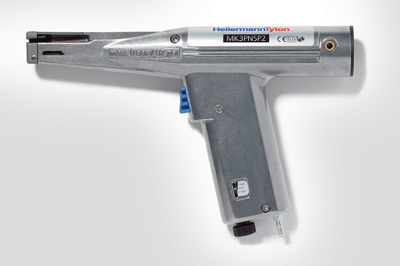

Pneumatic processing tool with metal housing MK3PNSP2
Unit Price (€ / pc.)
1,339.3926 € *
Standard delivery time from the manufacturer is: 1 Week
- Pneumatic processing tool
- Robust metal housing
- For cable ties up to 4.8 mm wide
- Process-safe clamping and automatic flush cutting
- Stepless traction adjustment
- High setting speed
- Reliable and low-maintenance
Operation: pneumatic
For air pressure: min. - max. 3 - 6 bar
Air connection: bottom
Binder width: max. 4.8 mm
Air connection: 4.0 mm
Tensile force: approx. 50 to 160 N, adjustable
Material: Aluminium (AL)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pneumatic cable tie tensioning tool | |
| Weight | 560 g | |
| Handle Material | metal | |
| Bond strength | 1.5 mm | |
| max. binder width | 4.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84671900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
