166-25704 | HellermannTyton

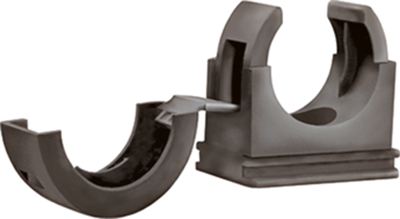

Clamp, (L x W x H) 48 x 15 x 51 mm, clamping range 34 mm, PA, black, for hose mounting, 166-25704
Unit Price (€ / pc.)
3.3201 € *
Available: 224 pcs.
Total Price:
3.32 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3201 €
10 pcs.
3.0226 €
50 pcs.
2.7965 €
100 pcs.
2.5704 €
500 pcs.
2.4157 €
*incl. VAT plus shipping costs
Subject to prior sale
Plastic clips series HelaGuard, type HellermannTyton PACC.
With integrated lid, for plastic conduit; Material: polyamide 6.6. Color: black. Operating temperatures: –50 to +135 °C. Fire protection properties: to UL 94 V-2.
Technical attributes (type, conduit diameter, mounting hole thread): PACC34, 34 mm, M 6
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | 34 mm | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 135 °C | |
| Suitable for | hose mounting | |
| Height | 51 mm | |
| Width | 15 mm | |
| Length | 48 mm | |
| Colour | black | |
| Material | PA | |
| Product type | clamp |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 10 pieces |
| Customs tariff number | 39269097 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
