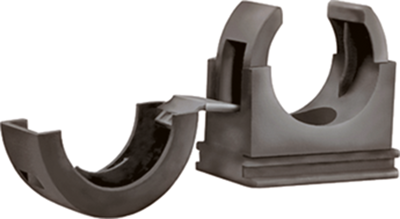

Clamp, (L x W x H) 32 x 15 x 36 mm, clamping range 21 mm, PA, black, for hose mounting, 166-25702
Unit Price (€ / pc.)
2.1420 € *
Available: 10 pcs.
Total Price:
2.14 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1420 €
10 pcs.
1.9516 €
50 pcs.
1.8088 €
100 pcs.
1.6541 €
500 pcs.
1.5589 €
*incl. VAT plus shipping costs
Subject to prior sale
Plastic clips series HelaGuard, type HellermannTyton PACC.
With integrated lid, for plastic conduit; Material: polyamide 6.6. Color: black. Operating temperatures: –50 to +135 °C. Fire protection properties: to UL 94 V-2.
Technical attributes (type, conduit diameter, mounting hole thread): PACC21, 21 mm, M 6
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | 21 mm | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 135 °C | |
| Suitable for | hose mounting | |
| Height | 36 mm | |
| Width | 15 mm | |
| Length | 32 mm | |
| Colour | black | |
| Material | PA | |
| Product type | clamp |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 10 pieces |
| Customs tariff number | 39269097 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
