151-00701 | HellermannTyton

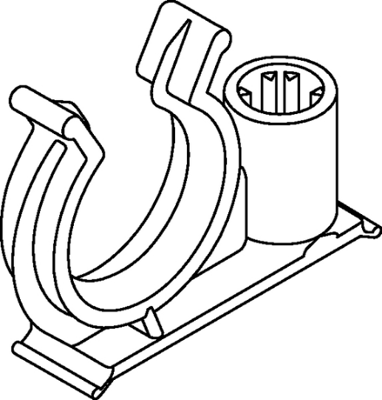

Pipe clamp, (L x W x H) 31.8 x 11 x 19.4 mm, PA, black, for corrugated pipes, 151-00701
Unit Price (€ / pc.)
1.666 € *
Standard delivery time from the manufacturer is: 1 Week

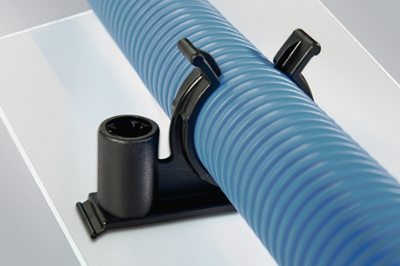

Corrugated tube clip, 151-00701, HellermannTyton
This holder is used in the automotive industry, in the production of cable harnesses and in the electrical industry. Its quick and easy mounting is the reason for its universal success wherever corrugated tubing and pipes have to be fixed quickly and securely.
Features
- Tube is guided accurately by clicking
- Clamp can be unscrewed and removed from the weld stud
- Axial slipping is prevented by the inside profile of the clamp
- For M6 weld studs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 11 mm | |
| Suitable for | corrugated pipes | |
| Material | PA | |
| Length | 31.8 mm | |
| Product type | pipe clamp | |
| max. operating temperature | 105 °C | |
| Colour | black | |
| Height | 19.4 mm | |
| min. operating temperature | -40 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 500 pieces |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
