151-12819 | HellermannTyton
Flat cable clip, max. bundle Ø 3.2 mm, PA, natural, self-adhesive, (L x W x H) 26 x 23 x 6.5 mm, 151-12819
Unit Price (€ / pc.)
0.9282 € *
Available: 207 pcs.
Total Price:
0.93 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9282 €
10 pcs.
0.8687 €
100 pcs.
0.8092 €
500 pcs.
0.7497 €
1000 pcs.
0.7021 €
*incl. VAT plus shipping costs
Subject to prior sale

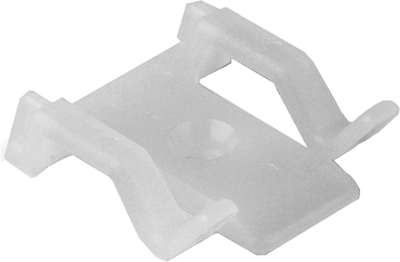

Mounting sockets, type HellermannTyton TY8H.

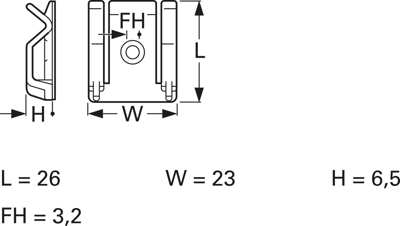

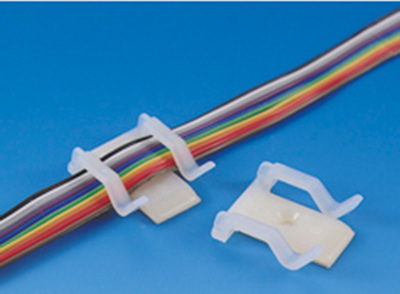

For mounting tubing, cables or cable harnesses without additional cable ties; Material: polyamide 6.6 (PA66). Operating temperatures: –40 to +85 °C (briefly up to +105 °C). Dimensions: L 26, W 23, H 6.5 mm. Mounting hole: 3.2 mm. Harness diameter: max. 3.0 mm.
Type: 151–12819, TY8H1S, self–adhesive and for screw mounting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. Bundle diameter | 3.2 mm | |
| Width | 23 mm | |
| Material | PA | |
| Height | 6.5 mm | |
| Colour | natural | |
| Product type | flat cable clip | |
| Length | 26 mm | |
| Self-adhesive | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 100 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
