151-10902 | HellermannTyton

Mounting base, PA, natural, (L x W x H) 30 x 30 x 4.5 mm, 151-10902

Order No.: 12H5031
EAN: 4031026413716
MPN:
151-10902
QM30-PA66-NA
Series: QM
151-10902 HellermannTyton Cable Holders Image 1
151-10902 HellermannTyton Cable Holders Image 2
Image may differ
Unit Price (€ / pc.)
0.8687 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
0.87 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8687 €
10 pcs.
0.7616 €
50 pcs.
0.7021 €
100 pcs.
0.6426 €
500 pcs.
0.6069 €
*incl. VAT plus shipping costs
Subject to prior sale

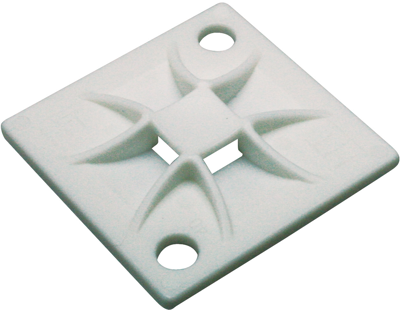

Mounting sockets, type HellermannTyton QM.

Self-adhesive and screw mounting, halogen-free. cable ties of the Q series can be looped in from all four sides and always remain at their position during installation ( in a vertical position); Material: polyamide 6.6. Operating temperatures: –40 to +85 °C. Fire protection properties to UL 94 V-2 (without adhesive).

Screwable.

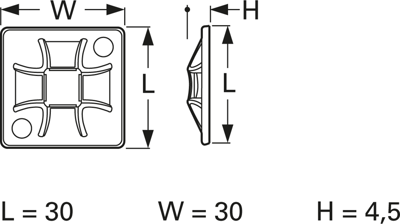

Technical attributes (type, dimensions, tie width TW, color): 151-10902, L 30, W 30, H 4.5 mm, TW 5.1 mm, plain

Technical specifications
Colour natural
Self-adhesive No
Width 30 mm
Height 4.5 mm
Length 30 mm
Product type mounting base
Material PA
Logistics
Country of origin DE
Customs tariff number 39269097
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
