151-03559 | HellermannTyton
Cable clamp, max. bundle Ø 50.8 mm, PA, black, (L x W x H) 149.7 x 35.1 x 30.4 mm, 151-03559
Order No.: 42P5602
EAN: 4031026676487
MPN:
151-03559
CMRCDHM8-PA66HIRHSUV-BK
Unit Price (€ / pc.)
2.0111 € *
Available: 150 pcs.

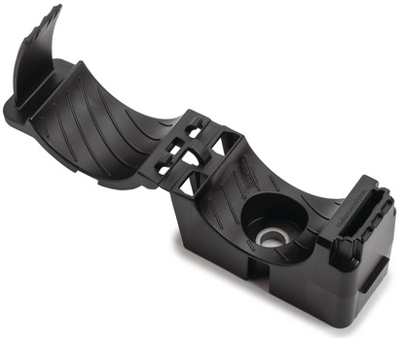

Cable clip, 151-03559, HellermannTyton

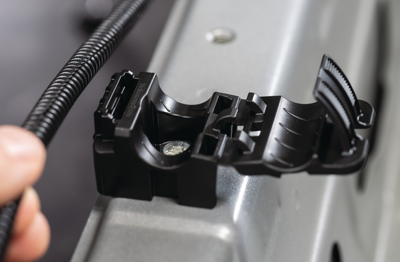

The 151-03559 is a perfect fit when facing space constraint or where offset mounting option is not ideal. Easily twists onto existing threaded rods, eliminating the need for additional hardware. The robust design and durable material makes it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This allows the clamp to be reused without removing or replacing any bolts or screws.
Features
- Designed for applications where space is limited or when a staggered mounting option is not ideal
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 30.4 mm | |
| Colour | black | |
| Self-adhesive | No | |
| Material | PA | |
| max. Bundle diameter | 50.8 mm | |
| Width | 35.1 mm | |
| Length | 149.7 mm | |
| Product type | mounting clip |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | US |
| Original Packaging | Carton with 150 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
