151-01561 | HellermannTyton

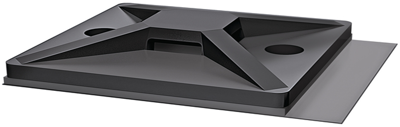

Mounting base, PA, black, self-adhesive, (L x W x H) 38 x 38 x 6.4 mm, 151-01561
Order No.: 12H4935
EAN: 4031026550367
MPN:
151-01561
MB5APT-I-PA66-BK
This item is no longer available.
As an alternative, we recommend the following item:
Mounting base, max. bundle Ø 4.7 mm, PA, black, self-adhesive, (L x W x H) 38 x 38 x 6.4 mm, 151-02247
Order No.: 42P5568
Manufacturer: HellermannTyton
per pc. 3.1892 € *
Series Solid Tack Mounting Bracket HellermannTyton MB5APT-I
- SolidTack MB base with high performance adhesive tape of homogeneous acrylate
- Very good initial adhesion which increases with time
- adhesive with high cohesive strength and good weather resistance
- Innovative fastening solution for high and low-energy surfaces
- Protective film with overlap facilitates removal
Maximum width: 10.0 mm
Material: PA 6.6
Operating temperature: -40 to +85 ° C
Color: Black
Dimensions: 38 mm x 38 mm x 6.3 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 38 mm | |
| Height | 6.4 mm | |
| Colour | black | |
| Material | PA | |
| Width | 38 mm | |
| Product type | mounting base | |
| Self-adhesive | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 100 pieces |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
