151-01527 | HellermannTyton
Mounting base, PA, black, self-adhesive, (L x W x H) 28 x 28 x 6.3 mm, 151-01527
Order No.: 12H4776
EAN: 4031026543703
MPN:
151-01527
This item is no longer available.
As an alternative, we recommend the following item:
Mounting base, PA, black, self-adhesive, (L x W x H) 28 x 28 x 6.3 mm, 151-02219
Order No.: 12H5027
Manufacturer: HellermannTyton
per pc. 1.6898 € *

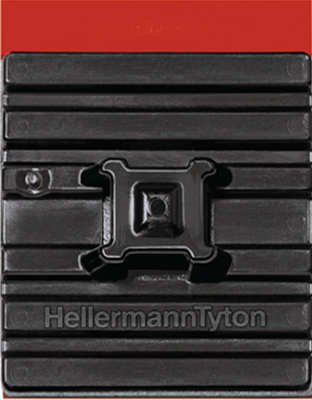

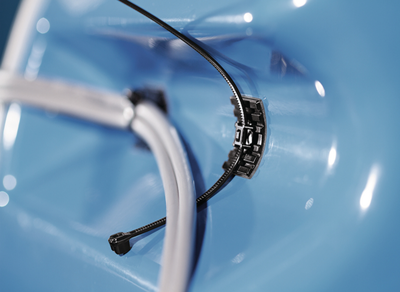

FlexTack Mounting base for cable ties with special adhesive 151-01527 FMB4APT-I by HellermannTyton
- Flexible base for rounded and angled surfaces
- FMBAPT bases are supplied with a 100% closed cell acrylic adhesive tape.
- Greater design freedom, weight reduction and process cost optimization
- High tensile and shear strength combined with high temperature resistance
- Innovative fastening solution for low-energy surfaces
- Protective film with overhang for very easy peel-off
Max. Binder width: 5.4 mm
Material: Polyamide 6.6 heat stabilized (PA66HS)
Operating temperature: -40°C to +105°C
Fire protection properties: UL94 V2 (without adhesive)
Dimensions: 28 mm x 28 mm x 6.3 mm
Colour: black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 6.3 mm | |
| Colour | black | |
| Self-adhesive | Yes | |
| Material | PA | |
| Width | 28 mm | |
| Length | 28 mm | |
| Product type | mounting base |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
