151-01198 | HellermannTyton
Cable clip, lockable, max. bundle Ø 22 mm, PA, black, (L x W) 34.5 x 10 mm, 151-01198
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: 1 Week

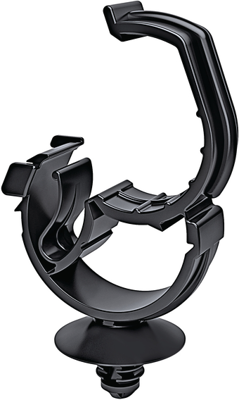

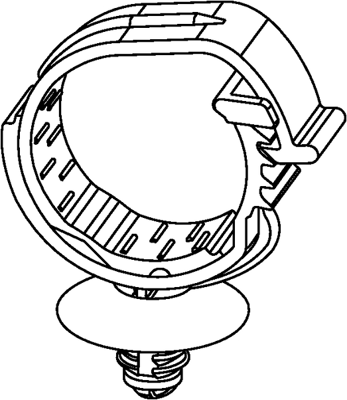

Bundling Clip, 151-01198, HellermannTyton
Automatic Harness Clip was developed to maintain engine harness in the automotive industry. It is also used in the electrical industry to maintain tubing and harness. Thanks to its versatility and technical specification, it can adapt to different industry.
Features
- Allows simple and secure fixing of cables
- Automatic closure to save time during installation
- Can be easily reopened
- Disc adjusts tie for pressures from various directions and minimizes ingress of dust and dirt
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | lockable | |
| max. Bundle diameter | 22 mm | |
| Width | 10 mm | |
| Material | PA | |
| Product type | cable clip | |
| Colour | black | |
| Length | 34.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 1,300 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
