173-02000 | HellermannTyton

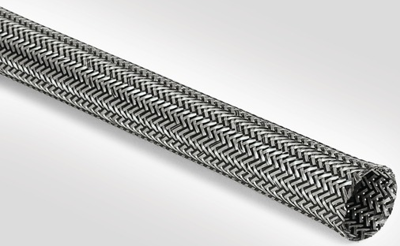

Metal braided sleeve, inner Ø 20 mm, range 18-25 mm, black/silver, halogen free, -40 to 150 °C, 173-02000
Unit Price (€ / mtr.)
37.4850 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
1,874.25 € *
Price list
Quantity
Price per unit*
50 mtr.
37.4850 €
100 mtr.
35.2835 €
500 mtr.
33.0820 €
*incl. VAT plus shipping costs
Subject to prior sale
Electromagnetic protection braided sleeving, 173-02000, HellermannTyton
Electromagnetic protection braided sleeving is used for highly sensitive electronics, such as electrical appliances and machines, radio equipment, military and automotive engineering.
Features
- Excellent electromagnetic protection
- Extremely flexible, expandable and easy to apply
- Superior abrasion protection
- No kinks or tears, even when bending the sleeve 90°
- Particularly suitable for applications with restricted space or requiring movement
- Inner disposable tube protects sleeve from deformation and allows for easy insertion of cables
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black/silver | |
| Application range | 18-25 mm | |
| max. operating temperature | 150 °C | |
| Halogen free | Yes | |
| min. operating temperature | -40 °C | |
| Material | copper, tin-plated, PET | |
| Version | metal braided sleeve | |
| Inner diameter | 20 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 74130000 |
| Original Packaging | Reel with 50 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
