173-01800 | HellermannTyton

Metal braided sleeve, inner Ø 18 mm, range 16-22 mm, black/silver, halogen free, -40 to 150 °C, 173-01800

Order No.: 91F4103
EAN: 4031026227542
MPN:
173-01800
HEGEMIP18-PET/SNCU-BK/ML
Series: HEGEMIP
173-01800 HellermannTyton Braided Sleeving
Image may differ
Unit Price (€ / mtr.)
31.2970 € *
Available: 36 mtr.
Total Price:
31.30 € *
Price list
Quantity
Price per unit*
1 mtr.
31.2970 €
10 mtr.
28.9527 €
50 mtr.
26.6084 €
100 mtr.
25.0376 €
500 mtr.
23.4787 €
*incl. VAT plus shipping costs
Subject to prior sale

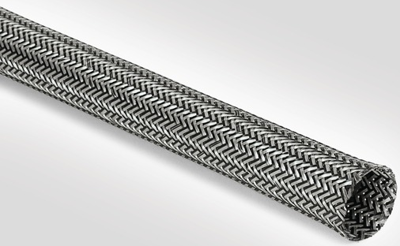

Electromagnetic protection braided sleeving, 173-01800, HellermannTyton

Electromagnetic protection braided sleeving is used for highly sensitive electronics, such as electrical appliances and machines, radio equipment, military and automotive engineering.

Features

  • Excellent electromagnetic protection
  • Extremely flexible, expandable and easy to apply
  • Superior abrasion protection
  • No kinks or tears, even when bending the sleeve 90°
  • Particularly suitable for applications with restricted space or requiring movement
  • Inner disposable tube protects sleeve from deformation and allows for easy insertion of cables
Technical specifications
Filter Property Value
max. operating temperature 150 °C
Application range 16-22 mm
min. operating temperature -40 °C
Material copper, tin-plated, PET
Inner diameter 18 mm
Version metal braided sleeve
Colour black/silver
Halogen free Yes
Logistics
Property Value
Country of origin FR
Customs tariff number 74130000
Original Packaging Reel with 50 meters
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
