173-01000 | HellermannTyton

Metal braided sleeve, inner Ø 10 mm, range 8-13 mm, black/silver, halogen free, -40 to 175 °C, 173-01000

Order No.: 91F4106
EAN: 4031026227313
MPN:
173-01000
HEGEMIP10-PET/SNCU-BK/ML
Series: HEGEMIP
173-01000 HellermannTyton Braided Sleeving
Image may differ
Unit Price (€ / mtr.)
8.9964 € *
Available: 85 mtr.
Total Price:
9.00 € *
Price list
Quantity
Price per unit*
1 mtr.
8.9964 €
10 mtr.
8.3181 €
50 mtr.
7.6517 €
100 mtr.
7.1995 €
500 mtr.
6.7473 €
*incl. VAT plus shipping costs
Subject to prior sale

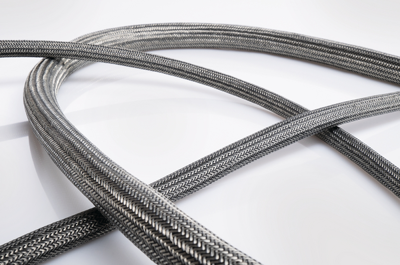

EMC braided sleeving, type HellermannTyton HEGEMIP.

Made of tinned copper and polyester yarn (halogen-free), for ultra-flexible expansion and fitting. Unlike pure metal braid tubing, this tubing contracts again and wraps around the cable to protect it. For protection during transportation and to enable the cables to be drawn in more easily, the tubing is supplied with support tubing on the inside; Properties: high flexibility, very good shielding values and good abrasion resistance. EMC standard: compliant with CISPR25/DIN VDE 0879-2 (10 kHz to 1.0 GHz). Burning behavior: FMVSS302, V 100 mm/min (1.0 mm thickness). Color: tin-colored/black. Operating temperatures: –40 °C to +175 °C (briefly up to +200 °C).

Technical attributes (type, application range (AR)): HEGEMIP–10, AR 10 to 13 mm

Technical specifications
Filter Property Value
Colour black/silver
min. operating temperature -40 °C
Application range 8-13 mm
max. operating temperature 175 °C
Version metal braided sleeve
Inner diameter 10 mm
Material copper, tin-plated, PET
Halogen free Yes
Logistics
Property Value
Customs tariff number 74130000
Original Packaging Reel with 50 meters
Country of origin FR
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
