173-00800 | HellermannTyton

Metal braided sleeve, inner Ø 8 mm, range 8-11 mm, black/silver, halogen free, -40 to 175 °C, 173-00800

Order No.: 91F4104
EAN: 4031026227306
MPN:
173-00800
HEGEMIP08-PET/SNCU-BK/ML
Series: HEGEMIP

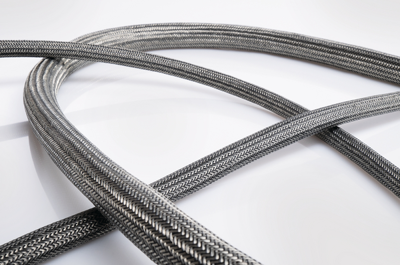

173-00800 HellermannTyton Braided Sleeving
Image may differ
Unit Price (€ / mtr.)
7.2590 € *
Next delivery: 20 mtr. on 2025-08-07
Total Price:
7.26 € *
Price list
Quantity
Price per unit*
1 mtr.
7.2590 €
10 mtr.
6.7116 €
100 mtr.
6.1761 €
500 mtr.
5.8072 €
1000 mtr.
5.4502 €
*incl. VAT plus shipping costs
Subject to prior sale

EMC braided sleeving, type HellermannTyton HEGEMIP.

Made of tinned copper and polyester yarn (halogen-free), for ultra-flexible expansion and fitting. Unlike pure metal braid tubing, this tubing contracts again and wraps around the cable to protect it. For protection during transportation and to enable the cables to be drawn in more easily, the tubing is supplied with support tubing on the inside; Properties: high flexibility, very good shielding values and good abrasion resistance. EMC standard: compliant with CISPR25/DIN VDE 0879-2 (10 kHz to 1.0 GHz). Burning behavior: FMVSS302, V 100 mm/min (1.0 mm thickness). Color: tin-colored/black. Operating temperatures: –40 °C to +175 °C (briefly up to +200 °C).

Technical attributes (type, application range (AR)): HEGEMIP–08, AR 8.0 to 11.5 mm

Technical specifications
Filter Property Value
min. operating temperature -40 °C
Version metal braided sleeve
max. operating temperature 175 °C
Material copper, tin-plated, PET
Inner diameter 8 mm
Colour black/silver
Application range 8-11 mm
Halogen free Yes
Logistics
Property Value
Original Packaging Reel with 100 meters
Country of origin FR
Customs tariff number 74130000
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
