170-81106 | HellermannTyton
Plastic braided sleeve, range 32-70 mm, black, halogen free, -50 to 150 °C, 170-81106
Unit Price (€ / mtr.)
10.3292 € *
Standard delivery time from the manufacturer is: 8 Weeks

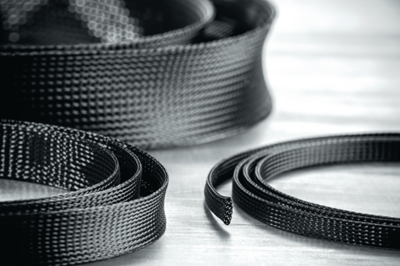

Flame-retardant polyester braided sleeving, 170-81106, HellermannTyton
Helagaine HEGPETFRX is especially suitable for areas wherever fire protection is important as well as a higher expansion ratio of the braided sleeve. Helagaine HEGPETFRX offers superior cable protection for machine tools, robotics and automatic equipment.
Features
- Made of sturdy polyester
- Self-extinguishing
- Highly flexible
- High rate of expansion
- Easy to apply over irregular shapes
- Good abrasion resistance
- Halogen-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Application range | 32-70 mm | |
| max. operating temperature | 150 °C | |
| Halogen free | Yes | |
| min. operating temperature | -50 °C | |
| Material | polyester | |
| Version | plastic braided sleeve |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 58081000 |
| Original Packaging | Reel with 50 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
