170-31200 | HellermannTyton

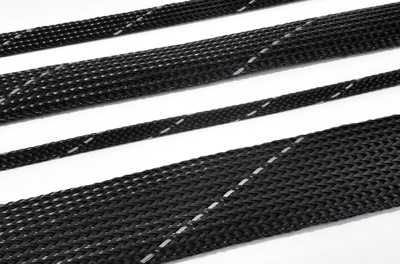

Polyester braided sleeve, inner Ø 12 mm, range 11-17 mm, black, -50 to 150 °C, 170-31200
This item is no longer available.
As an alternative, we recommend the following item:
Plastic braided sleeve, inner Ø 12 mm, range 11-17 mm, black, halogen free, -50 to 150 °C, 170-81006
Order No.: 91F4965
Manufacturer: HellermannTyton
per mtr. 4.1055 € *
For more stringent fire protection requirements, type HEGPV0.
The flame retardant additives achieve a self-extinguishing response to fire to UL 94 V-0; Material: Polyester (PBT). Color: black with gray strands, melting point: +225 °C. Operating temperatures: –50 to +150 °C, briefly to +200 °C.
Technical attributes (type, range of application (AR)): HEGPV012, AR 11 to 17 mm
Technical specifications
| Version | Kunststoff-Geflechtschlauch | |
| Inner diameter | 12 mm | |
| Application range | 11-17 mm | |
| Colour | schwarz | |
| Material | Polyester | |
| Halogen free | No | |
| Optical Coverage | 81 % | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 58081000 |
| Original Packaging | Rolle mit 50 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
