422-50202 | HellermannTyton
Shrink-fit part branching, 3:1, Y-shape, S1 (60.2/40.1 mm), S2 (20.1/20.1 mm), 422-50202
Order No.: 42P5875
EAN: 5022660465017
MPN:
422-50202
492H414-9-PO-X-BK
Series: Helashrink Serie 492H
Unit Price (€ / pc.)
52.3957 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Shrink-fit part branching, 422-50202, HellermannTyton

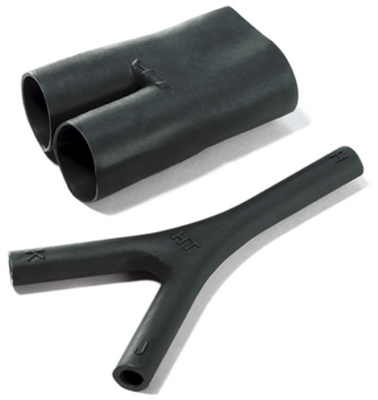

The 422-50202 is a low profile transition boot 1 to 2 cables for cable harness breakouts or transitions.
Technical specifications
| Number of outputs | 2 | |
| Version | Y-Form | |
| Colour | schwarz | |
| Inner diameter after shrinkage 2 | 20.1 mm | |
| Inner diameter side 1 (after shrinkage) | 40.1 mm | |
| Inner diameter side 1 (before shrinkage) | 60.2 mm | |
| Inner diameter before shrinkage 2 | 20.1 mm | |
| contains glue inside | No | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -55 °C | |
| Shrinking rate | 3:1 |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 39174000 |
| Original Packaging | Beutel mit 5 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
