422-00201 | HellermannTyton
Low profile heat shrink sleeve, 4:1, straight, S1 (34/26.9 mm), S2 (17.5/12.7 mm), 422-00201
Order No.: 42P5906
EAN: 5022660453212
MPN:
422-00201
313C743-9-PO-X-BK
Series: Helashrink Serie 313C
Unit Price (€ / pc.)
20.8369 € *
Standard delivery time from the manufacturer is: 13 Weeks

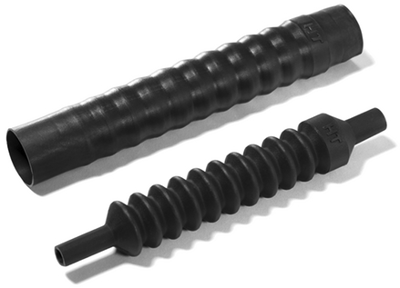

Low profile moulded part, 422-00201, HellermannTyton
The 422-00201 low profile moulded part with its convoluted design grants flexibility for different cable outlet angles. It is suitable for circular grooved adapters to provide strain relief.
This product can be used in military and general performance harnessing.
Features
- Excellent environmental sealing with adhesive
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shrinking rate | 4:1 | |
| Version | straight | |
| contains glue inside | No | |
| Inner diameter side 1 (after shrinkage) | 26.9 mm | |
| min. operating temperature | -55 °C | |
| Inner diameter after shrinkage 2 | 12.7 mm | |
| max. operating temperature | 120 °C | |
| Wall thickness | 0.05 mm | |
| Inner diameter before shrinkage 2 | 17.5 mm | |
| Length | 146 mm | |
| Colour | black | |
| Inner diameter side 1 (before shrinkage) | 34 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 5 pieces |
| Customs tariff number | 39174000 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
