402-16039 | HellermannTyton
Heat shrink split cap, 3:1, straight, S1 (21/9 mm), S2 (9.4/2.8 mm), 402-16039
Order No.: 42P2978
EAN: 5022660552717
MPN:
402-16039
216-3-B8W-PO-X-BK
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
27.8222 € *
Available: 14 pcs.
Total Price:
27.82 € *
Price list
Quantity
Price per unit*
1 pcs.
27.8222 €
10 pcs.
24.4902 €
50 pcs.
22.8004 €
150 pcs.
21.8246 €
500 pcs.
20.7060 €
*incl. VAT plus shipping costs
Subject to prior sale

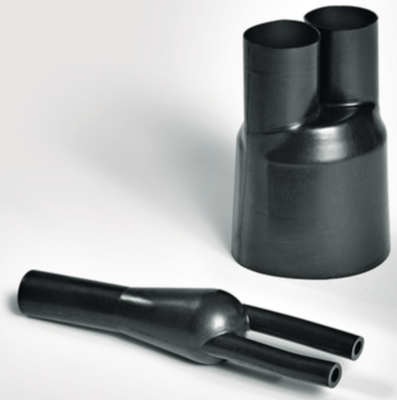

End closure / dividing cap, 402-16039, HellermannTyton
Two-finger molded parts for easy and time-saving insulation of splices, corrosion protection and strain relief by using an optional internal adhesive, cable breakouts are made of a hard cross-linked polyolefin with a flame retardant. This allows the use in indoor and outdoor areas. The molded parts offer excellent electrical and mechanical protection. The molded parts coated with internal adhesive provide a reliable seal against environmental influences and are available for 2, 3, 4, 5 and 6 core cables.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shrinking rate | 3:1 | |
| Version | straight | |
| contains glue inside | No | |
| Inner diameter side 1 (before shrinkage) | 21 mm | |
| Inner diameter before shrinkage 2 | 9.4 mm | |
| Inner diameter side 1 (after shrinkage) | 9 mm | |
| Inner diameter after shrinkage 2 | 2.8 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 100 °C | |
| Wall thickness | 1.6 mm | |
| Length | 76.5 mm | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 39174000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
