710-00155 | HellermannTyton

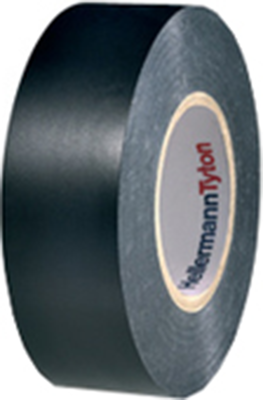

Insulation tape, 19 x 0.15 mm, PVC, black, 20 m, 710-00155
Order No.: 14L117
EAN: 4031026479880
MPN:
710-00155
HTAPE-FLEX15-19x20 PVC BK 10
Series: HelaTape Flex 15
Unit Price (€ / pc.)
2.4633 € *
Next delivery: 9 pcs. on 2025-07-18
Total Price:
2.46 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4633 €
10 pcs.
2.1658 €
100 pcs.
1.9040 €
250 pcs.
1.8326 €
1000 pcs.
1.7017 €
*incl. VAT plus shipping costs
Subject to prior sale
PVC insulation tapes, type HellermannTyton HelaTape Flex 15.
Very flexible, high adhesive strength, good abrasion resistance, resistant against moisture and chemicals, suitable for mechanical and electrical applications up to 1.0 kV, compliant with IEC 60454-3-1-5/5-PVCP/90, self-extinguishing to IEC 60454-2; Material: polyvinylene chloride (PVC). Dielectric strength: 40 kV/mm. Adhesion on steel: 2.0 N/10 mm. Adhesion on carrier material: 1.8 N/10 mm. Elongation at tear: 200 %. Tearing strength: 24 N/10 mm. Operating temperature: +90 °C. Thickness: 0.15 mm.
Technical attributes (type, width, color, roll length): 710-00155, 19 mm, black, 20 m roll
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thickness | 0.15 mm | |
| max. operating temperature | 90 °C | |
| Colour | black | |
| Product type | insulation tape | |
| Width | 19 mm | |
| Material | PVC | |
| Length | 20 m |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 39191012 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
