710-00154 | HellermannTyton
Insulation tape, 19 x 0.15 mm, PVC, green, 20 m, 710-00154
Order No.: 14L116
EAN: 4031026479873
MPN:
710-00154
HTAPE-FLEX15-19x20 PVC GN 10
Series: HelaTape Flex 15
Unit Price (€ / pc.)
2.5228 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
2.52 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5228 €
10 pcs.
2.2729 €
20 pcs.
2.1539 €
50 pcs.
2.0349 €
*incl. VAT plus shipping costs
Subject to prior sale

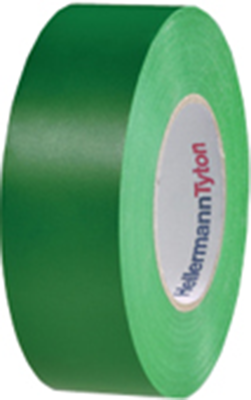

PVC insulation tapes, type HellermannTyton HelaTape Flex 15.
Very flexible, high adhesive strength, good abrasion resistance, resistant against moisture and chemicals, suitable for mechanical and electrical applications up to 1.0 kV, compliant with IEC 60454-3-1-5/5-PVCP/90, self-extinguishing to IEC 60454-2; Material: polyvinylene chloride (PVC). Dielectric strength: 40 kV/mm. Adhesion on steel: 2.0 N/10 mm. Adhesion on carrier material: 1.8 N/10 mm. Elongation at tear: 200 %. Tearing strength: 24 N/10 mm. Operating temperature: +90 °C. Thickness: 0.15 mm.
Technical attributes (type, width, color, roll length): 710-00154, 19 mm, green, 20 m roll
Technical specifications
| Thickness | 0.15 mm | |
| max. operating temperature | 90 °C | |
| Product type | insulation tape | |
| Width | 19 mm | |
| Colour | green | |
| Length | 20 m | |
| Material | PVC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 39191012 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
