710-00152 | HellermannTyton

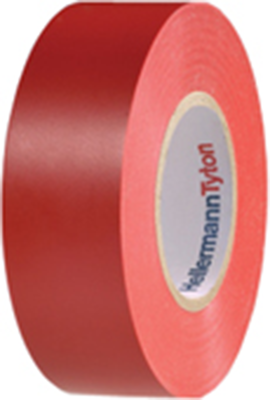

Insulation tape, 19 x 0.15 mm, PVC, red, 20 m, 710-00152
Order No.: 14L114
EAN: 4031026479859
MPN:
710-00152
HTAPE-FLEX15-19x20 PVC RD 10
Series: HelaTape Flex 15
Unit Price (€ / pc.)
2.4633 € *
Available: 10 pcs.
Total Price:
2.46 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4633 €
10 pcs.
2.1658 €
100 pcs.
1.9040 €
250 pcs.
1.8326 €
1000 pcs.
1.7017 €
*incl. VAT plus shipping costs
Subject to prior sale
PVC insulation tapes, type HellermannTyton HelaTape Flex 15.
Very flexible, high adhesive strength, good abrasion resistance, resistant against moisture and chemicals, suitable for mechanical and electrical applications up to 1.0 kV, compliant with IEC 60454-3-1-5/5-PVCP/90, self-extinguishing to IEC 60454-2; Material: polyvinylene chloride (PVC). Dielectric strength: 40 kV/mm. Adhesion on steel: 2.0 N/10 mm. Adhesion on carrier material: 1.8 N/10 mm. Elongation at tear: 200 %. Tearing strength: 24 N/10 mm. Operating temperature: +90 °C. Thickness: 0.15 mm.
Technical attributes (type, width, color, roll length): 710-00152, 19 mm, red, 20 m roll
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | red | |
| Thickness | 0.15 mm | |
| Width | 19 mm | |
| Length | 20 m | |
| Product type | insulation tape | |
| Material | PVC | |
| max. operating temperature | 90 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 39191012 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
