710-00146 | HellermannTyton

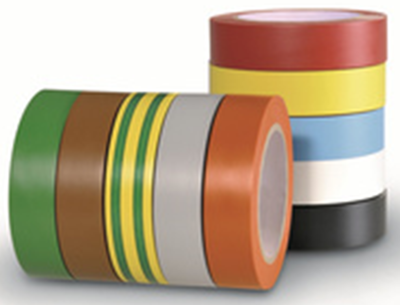

Insulation tape, 15 x 0.15 mm, PVC, red/gray/yellow/green/orange/white/brown/black, 10 m, 710-00146
PVC insulating tape assortments, type HellermannTyton HelaTape Flex 15.
Very flexible, high adhesive strength, good abrasion resistance, resistant against moisture and chemicals, suitable for mechanical and electrical applications up to 1.0 kV, compliant with IEC 60454-3-1-5/5-PVCP/90, self-extinguishing to IEC 60454-2; Material: polyvinylene chloride (PVC). Dielectric strength: 40 kV/mm. Adhesion on steel: 2.0 N/10 mm. Adhesion on carrier material: 1.8 N/10 mm. Elongation at tear: 200 %. Operating temperature: +90 °C. Width: 15 mm. Thickness: 0.15 mm. Roll length: 10 m, Colors: red (RD), gray (GY), yellow (YE), green (GN), blue (BU), orange (OG), white (WH), brown (BN), black (BK), green-yellow (GNYE).
Type: 710-00146, PVC insulation tape assortment
| Colour | red/gray/yellow/green/orange/white/brown/black | |
| Thickness | 0.15 mm | |
| Width | 15 mm | |
| Length | 10 m | |
| Product type | insulation tape | |
| Material | PVC | |
| max. operating temperature | 90 °C |
| Country of origin | CN |
| Customs tariff number | 39191012 |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
