710-00137 | HellermannTyton

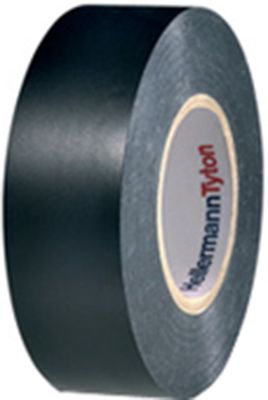

Insulation tape, 25 x 0.15 mm, PVC, black, 25 m, 710-00137
Order No.: 14L127
EAN: 4031026402000
MPN:
710-00137
HTAPE-FLEX15-25x25 PVC BK
Series: HelaTape Flex 15
Unit Price (€ / pc.)
4.3316 € *
Available: 6 pcs.
Next delivery: 10 pcs. on 2025-05-12
Leadtime: 1 Week **
Total Price:
4.33 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3316 €
5 pcs.
3.8080 €
10 pcs.
3.3439 €
25 pcs.
3.2130 €
50 pcs.
3.0107 €
*incl. VAT plus shipping costs
**Subject to prior sale
PVC insulation tapes, type HellermannTyton HelaTape Flex 15.
Very flexible, high adhesive strength, good abrasion resistance, resistant against moisture and chemicals, suitable for mechanical and electrical applications up to 1.0 kV, compliant with IEC 60454-3-1-5/5-PVCP/90, self-extinguishing to IEC 60454-2; Material: polyvinylene chloride (PVC). Dielectric strength: 40 kV/mm. Adhesion on steel: 2.0 N/10 mm. Adhesion on carrier material: 1.8 N/10 mm. Elongation at tear: 200 %. Tearing strength: 24 N/10 mm. Operating temperature: +90 °C. Thickness: 0.15 mm.
Technical attributes (type, width, color, roll length): 710-00137, 25 mm, black, 25 m roll
Technical specifications
| Width | 25 mm | |
| Thickness | 0.15 mm | |
| Colour | schwarz | |
| Length | 25 m | |
| Material | PVC | |
| max. operating temperature | 90 °C | |
| Product type | Isolierband |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 39191012 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
