710-00105 | HellermannTyton

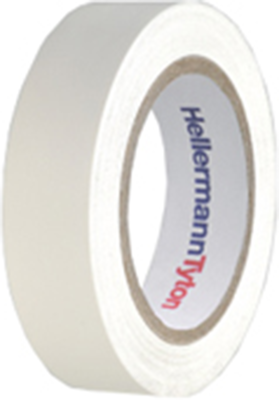

Insulation tape, 15 x 0.15 mm, PVC, white, 10 m, 710-00105
Order No.: 14L106
EAN: 4031026401683
MPN:
710-00105
HTAPE-FLEX15-15x10 PVC WH 10
Series: HelaTape Flex 15
Unit Price (€ / pc.)
1.0948 € *
Available: 28 pcs.
Total Price:
1.09 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0948 €
10 pcs.
0.9639 €
50 pcs.
0.8806 €
100 pcs.
0.7973 €
500 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale
PVC insulation tapes, type HellermannTyton HelaTape Flex 15.
Very flexible, high adhesive strength, good abrasion resistance, resistant against moisture and chemicals, suitable for mechanical and electrical applications up to 1.0 kV, compliant with IEC 60454-3-1-5/5-PVCP/90, self-extinguishing to IEC 60454-2; Material: polyvinylene chloride (PVC). Dielectric strength: 40 kV/mm. Adhesion on steel: 2.0 N/10 mm. Adhesion on carrier material: 1.8 N/10 mm. Elongation at tear: 200 %. Tearing strength: 24 N/10 mm. Operating temperature: +90 °C. Thickness: 0.15 mm.
Technical attributes (type, width, color, roll length): 710-00105, 15 mm, white, 10 m roll
Technical specifications
| Thickness | 0.15 mm | |
| max. operating temperature | 90 °C | |
| Material | PVC | |
| Colour | white | |
| Product type | insulation tape | |
| Width | 15 mm | |
| Length | 10 m |
Download
Logistics
| Customs tariff number | 39191012 |
| Country of origin | CN |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
