148-00121 | HellermannTyton
Covering spacer, black, for recessed spotlight, 148-00121
Unit Price (€ / pc.)
4.9147 € *
Standard delivery time from the manufacturer is: 1 Week
Downlight cover, 148-00121, HellermannTyton

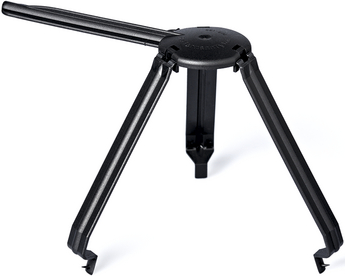

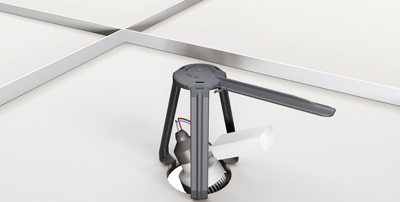

This further development of SpotClip-II allows the use of an existing power supply. In the case of a spot without power supply, this added straight leg can be cut easily and removed manually. It helps to avoid contact between the insulation and the external power supply of the spot. SpotClip-III will fit to all standard applications with solid insulation material. It is delivered flat with flexible legs. They can be locked within seconds. The height of the this mounting device is depending on the fixing hole diameter. SpotClip-III is suitable for LED and Halogen downlights with a fixing hole diameter from 62 mm to 120 mm. The maximum product height is 130 mm depending on the fixing hole diameter.
Features
- Ensures safety distance between the downlight, damp-proof foil and insulation material
- Flexible installation during or after construction
- Additional spikes at the end of the legs prevent SpotClip shifting
- Prevents damage to insulation material caused by overheating
- Flame retardant material according to UL94 V2
- Improves life span and reliability of lamps
- Faster and easier installation and replacement of bulbs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | black | |
| Suitable for | recessed spotlight | |
| Material | PA | |
| Product type | covering spacer |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 5 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
