1022-211C | HEBOTEC
Shield clamp, max. bundle Ø 12 mm, steel, galvanized, 1022-211C
Order No.: 27P0093
EAN: 4251827900912
MPN:
1022-211C
Unit Price (€ / pc.)
5.8429 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
5.84 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8429 €
10 pcs.
5.5216 €
50 pcs.
5.3193 €
100 pcs.
5.1170 €
*incl. VAT plus shipping costs
Subject to prior sale

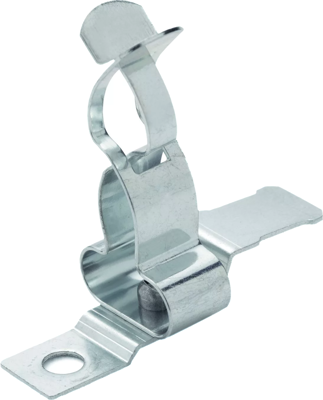

Shield clamp, 1022-211C, HEBOTEC

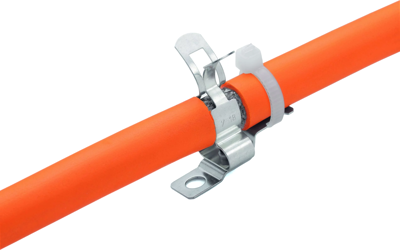

The shield clamp for C-rails can be assembled with a 90° turn into C-rail profile. With the assistance for the M4-fastenign screw the mounting adapter is pinched in the C-rail. Simply push the cable shield into shield clamp in order to achieve secure contact. The strain relief bar offers the possibility of reducing strain on the cable sheath by using a cable tie.
Features
- Strain relief by using a cable tie on the cable sheath
- Very compact design
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | steel, galvanized | |
| Self-adhesive | No | |
| max. Bundle diameter | 12 mm | |
| Product type | shield clamp |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 73201090 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
