1012-001B | HEBOTEC

Shield clamp, max. bundle Ø 35 mm, steel, galvanized, nickel-plated/copper-plated, tin-plated, 1012-001B

Order No.: 27P0123
EAN: 4251827900486
MPN:
1012-001B

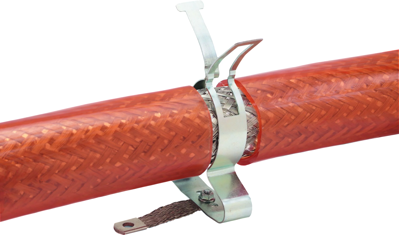

1012-001B HEBOTEC Cable Holders Image 1

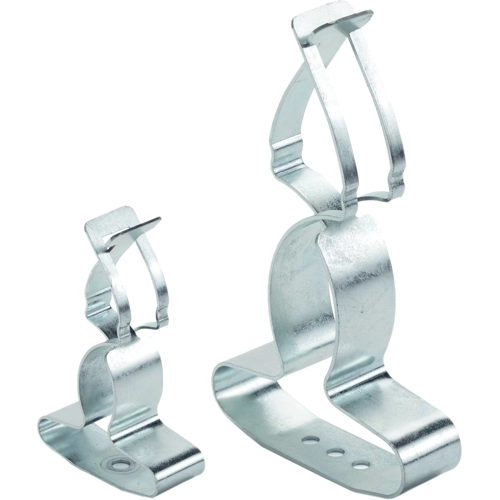

1012-001B HEBOTEC Cable Holders Image 2
Image may differ
Unit Price (€ / pc.)
11.1027 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
11.10 € *
Price list
Quantity
Price per unit*
1 pcs.
11.1027 €
5 pcs.
10.3649 €
10 pcs.
9.9841 €
25 pcs.
9.6152 €
50 pcs.
9.2463 €
*incl. VAT plus shipping costs
**Subject to prior sale

Shield clamp, 1012-001B, HEBOTEC

The shield clamp Big for large diameters features a wide clamping range, thus allows an excellent contact of cable shields with large diameters. The stripped cable has to be pressed into the shield clamp. The spring pressure of the clamp offers constant contact with the cable shield. The shield clamp is available for direct assembly with an M4 screw, with clip foot for assembly onto a 35 mm DIN rail and with a flexible flat tape connector with a length of 50 mm.

Features

  • Constant contact with cable shield due to spring pressure
  • High conductance
  • Flexible earth connection
Technical specifications
max. Bundle diameter 35 mm
Self-adhesive No
Product type shield clamp
Material steel, galvanized, nickel-plated/copper-plated, tin-plated
Logistics
Country of origin DE
Customs tariff number 73201090
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
