1030-020D | HEBOTEC

Snap-on mounting, M4, for DIN rail, 1030-020D

Order No.: 27P0112
EAN: 4251827903234
MPN:
1030-020D
1030-020D HEBOTEC Accessories for DIN Rails Image 1
1030-020D HEBOTEC Accessories for DIN Rails Image 2
Image may differ
Unit Price (€ / pc.)
1.7612 € *
Available: 15 pcs.
Total Price:
1.76 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7612 €
25 pcs.
1.6541 €
50 pcs.
1.5946 €
100 pcs.
1.5351 €
*incl. VAT plus shipping costs
Subject to prior sale

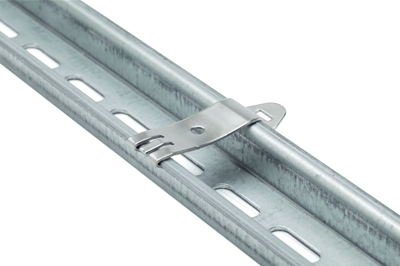

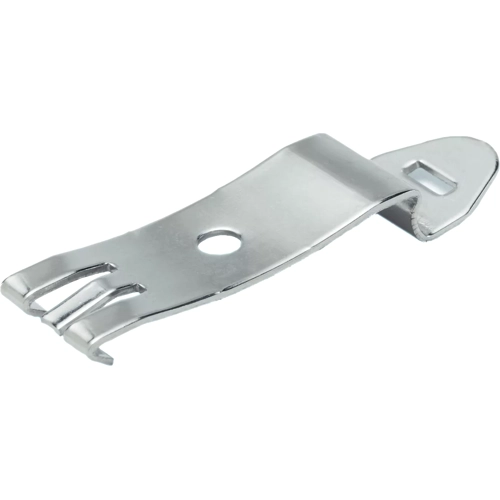

Mounting clip, 1030-020D, HEBOTEC

The clip foot Multi can be snapped onto a 35 mm DIN rail (TS35) without the use of tools. A small slot screwdriver suffices to dismantle. The clip foot Multi serves as a universal multiequipment carrier for assembly on 35 mm DIN rails. Due to the flat shape, a good contact surface and a good holding force on the DIN rail is achieved.

Features

  • High clamping forces
  • High conductance
Technical specifications
Filter Property Value
Product type snap-on mounting
Version M4
Suitable for DIN rail
Logistics
Property Value
Country of origin IT
Customs tariff number 73201090
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
