21470000008 | Harting

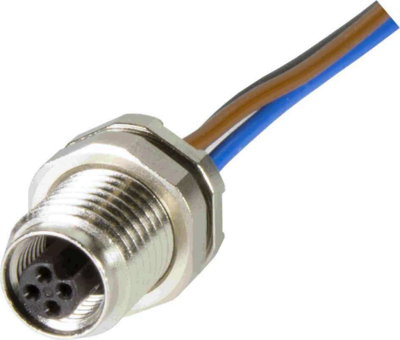

Panel socket, M5, 3 pole, screw locking, straight, 21470000008
Order No.: 42F9261
EAN: 5713140224674
MPN:
21470000008
21 47 000 0008
Series: Circular connectors M5
Unit Price (€ / pc.)
21.6937 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
21.69 € *
Price list
Quantity
Price per unit*
1 pcs.
21.6937 €
5 pcs.
20.7060 €
10 pcs.
20.0991 €
25 pcs.
18.7187 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator connector, 21470000008, Harting
Panel feed through with conductors, for rear mounting, 20 cm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Version | cable 0.2 m | |
| Pin number | 3 pole | |
| Thread size | M5 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | rear mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
