21433814451 | Harting
Panel socket, M12, 4 pole, solder connection, screw lock/push-pull, angled, 21433814451
Order No.: 42P2002
EAN: 5713140229099
MPN:
21433814451
21 43 381 4451
Series: Circular connectors M12
Unit Price (€ / pc.)
15.8627 € *
Standard delivery time from the manufacturer is: On Request

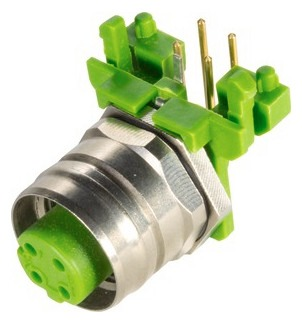

Panel socket, 21433814451, Harting
Panel socket with wave soldering termination, angled, for rear mounting, 4 contacts, D-coding.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | angled | |
| Product type | panel socket | |
| Coding | D | |
| Assembly | rear mounting | |
| Type of locking | screw lock/push-pull | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
