21433695800 | Harting
Panel socket, M12, 8 pole, screw locking, straight, 21433695800
Order No.: 42F9252
EAN: 5713140227866
MPN:
21433695800
21 43 369 5800
Series: Circular connectors M12
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
71.4238 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
71.42 € *
Price list
Quantity
Price per unit*
1 pcs.
71.4238 €
2 pcs.
69.4484 €
5 pcs.
67.5682 €
*incl. VAT plus shipping costs
Subject to prior sale

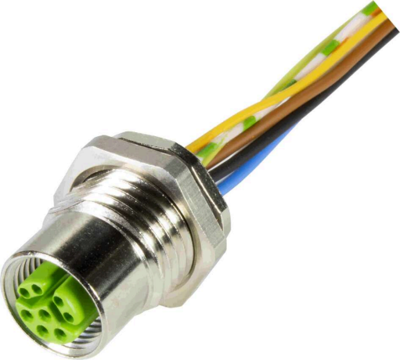

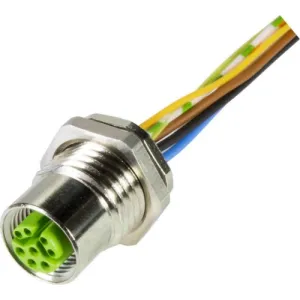

Sensor actuator connector, 21433695800, Harting
Panel feed through with conductors, for rear mounting, cable length: 1 m.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Version | cable 1 m | |
| Pin number | 8 pole | |
| Thread size | M12 | |
| Coding | Y | |
| Type of locking | screw locking | |
| Orientation | straight | |
| contact surface | nickel-plated/gold-plated | |
| Additional parts | equipped | |
| Assembly | rear mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
