21122832801 | Harting
Jack, M12, 8 pole, IDC connection, screw locking, straight, 21122832801
Unit Price (€ / pc.)
39.2819 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
39.28 € *
Price list
Quantity
Price per unit*
1 pcs.
39.2819 €
5 pcs.
37.4969 €
10 pcs.
36.3902 €
25 pcs.
33.9031 €
*incl. VAT plus shipping costs
Subject to prior sale

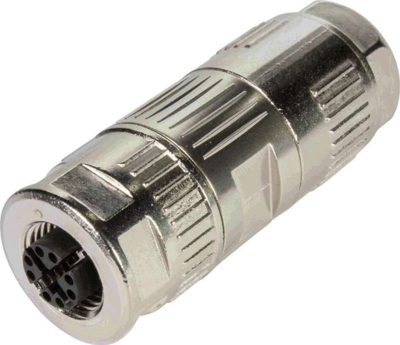

M12 sensor actuator connector, 21122832801, Harting
Cable connector, straight, female, X-coding, IDC termination, Contacts: 8, Screw locking, Degree of protection: IP65 / IP67 mated condition.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | jack | |
| Pin number | 8 pole | |
| Thread size | M12 | |
| Coding | X | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | IDC connection | |
| contact surface | gold-plated | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
