21043162400 | Harting
Panel socket, 7/8", 4 pole, screw locking, straight, 21043162400
Order No.: 42F9247
EAN: 5713140364547
MPN:
21043162400
21 04 316 2400
Series: Circular connectors 7/8
Unit Price (€ / pc.)
21.8960 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
21.90 € *
Price list
Quantity
Price per unit*
1 pcs.
21.8960 €
5 pcs.
20.9083 €
10 pcs.
20.2895 €
25 pcs.
18.8972 €
*incl. VAT plus shipping costs
Subject to prior sale

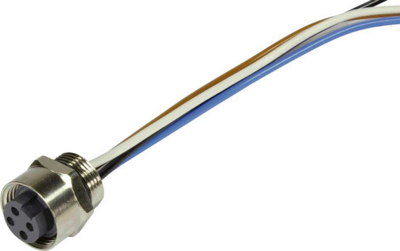

Sensor actuator connector, 21043162400, Harting
Panel feed through with conductors, for front mounting, 20 cm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Version | cable 0.2 m | |
| Pin number | 4 pole | |
| Thread size | 7/8" | |
| Type of locking | screw locking | |
| Orientation | straight | |
| contact surface | nickel-plated/gold-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
