21043161305 | Harting

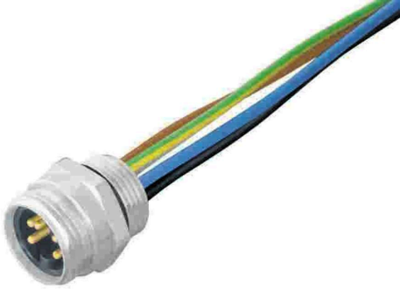

Panel plug, 7/8", 3 pole, screw locking, straight, 21043161305
Order No.: 42F9246
EAN: 5713140382152
MPN:
21043161305
21 04 316 1305
Series: Circular connectors 7/8
Unit Price (€ / pc.)
16.5053 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
16.51 € *
Price list
Quantity
Price per unit*
1 pcs.
16.5053 €
10 pcs.
15.4700 €
25 pcs.
15.0059 €
50 pcs.
13.9468 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator connector, 21043161305, Harting
Panel feed through with conductors, for front mounting, 20 cm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Version | cable 0.2 m | |
| Pin number | 3 pole | |
| Thread size | 7/8" | |
| Type of locking | screw locking | |
| Orientation | straight | |
| contact surface | nickel-plated/gold-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
