21041162505 | Harting

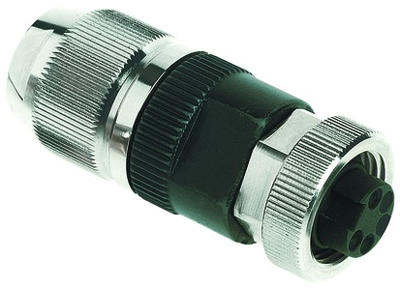

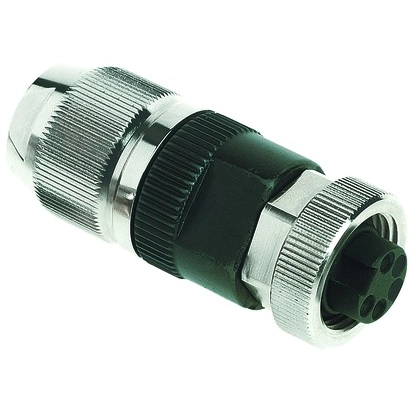

Jack, 5 pole, IDC connection, screw locking, straight, 21041162505
Order No.: 45F0228
EAN: 4099889690705
MPN:
21041162505
21 04 116 2505
Series: Circular connectors 7/8
Unit Price (€ / pc.)
61.7491 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
61.75 € *
Price list
Quantity
Price per unit*
1 pcs.
61.7491 €
10 pcs.
54.3354 €
50 pcs.
50.6345 €
100 pcs.
49.1470 €
250 pcs.
47.2906 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 21011405091, HARTING
Features
- Screw lock
- Overvoltage category: III
- A-coded
- Pollution degree: 3
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | IDC connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67 | |
| Product type | jack | |
| Pin number | 5 pole | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
