21038961505 | Harting

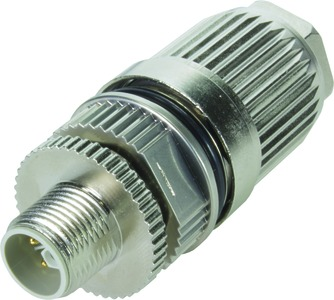

Plug, M12, 4 pole, crimp connection, screw locking, straight, 21038961505
Order No.: 45F0225
EAN: 4099889690675
MPN:
21038961505
21 03 896 1505
Series: Circular connectors M12
Unit Price (€ / pc.)
32.7964 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
32.80 € *
Price list
Quantity
Price per unit*
1 pcs.
32.7964 €
10 pcs.
28.8575 €
50 pcs.
26.8821 €
100 pcs.
26.1205 €
*incl. VAT plus shipping costs
Subject to prior sale

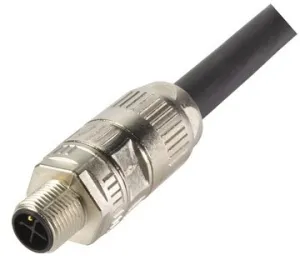

Sensor-actuator connector, 21038811811, HARTING
Features
- Crimp connection
- X-coded
- Pollution degree: 3
- Overvoltage category: II
Technical specifications
| Pin number | 4 pole | |
| Type of locking | screw locking | |
| Contact connection | crimp connection | |
| Product type | plug | |
| Coding | L | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
