21038813805 | Harting

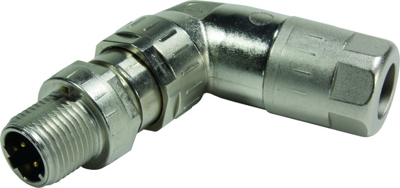

Plug, M12, 8 pole, crimp connection, screw locking, angled, 21038813805
Order No.: 45F0210
EAN: 4099889690538
MPN:
21038813805
21 03 881 3805
Series: Circular connectors M12
Unit Price (€ / pc.)
27.9888 € *
Standard delivery time from the manufacturer is: 5 Weeks
Sensor-actuator connector, 21033491501, HARTING
Features
- Screw lock
- Pollution degree: 3
- Overvoltage category: III
- Material contact: Brass
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65/IP67 | |
| Orientation | angled | |
| Type of locking | screw locking | |
| Coding | X | |
| Thread size | M12 | |
| Assembly | cable assembly | |
| contact surface | gold-plated | |
| Product type | plug | |
| Contact connection | crimp connection | |
| Pin number | 8 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
