21038813413 | Harting
Plug, M12, 4 pole, crimp connection, screw locking, angled, 21038813413
Order No.: 42P4015
EAN: 5713140226494
MPN:
21038813413
21 03 881 3413
Series: Circular connectors M12
Unit Price (€ / pc.)
28.8456 € *
Standard delivery time from the manufacturer is: On Request

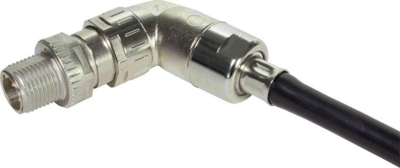

Cable connector, 21038813413, Harting
Cable connector, angled, male, D-coding, crimp termination, screw locking, Conductor cross-section: 0.12-0.82 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | unequipped | |
| Degree of protection (IP) | IP65/IP67 | |
| Orientation | angled | |
| Type of locking | screw locking | |
| Coding | X | |
| Thread size | M12 | |
| Assembly | cable assembly | |
| Product type | plug | |
| Contact connection | crimp connection | |
| Pin number | 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
