21038812827 | Harting
Jack, M12, 8 pole, crimp connection, screw lock/push-pull, straight, 21038812827
Order No.: 42P4013
EAN: 5713140226135
MPN:
21038812827
21 03 881 2827
Series: Circular connectors M12
Unit Price (€ / pc.)
26.2871 € *
Standard delivery time from the manufacturer is: On Request

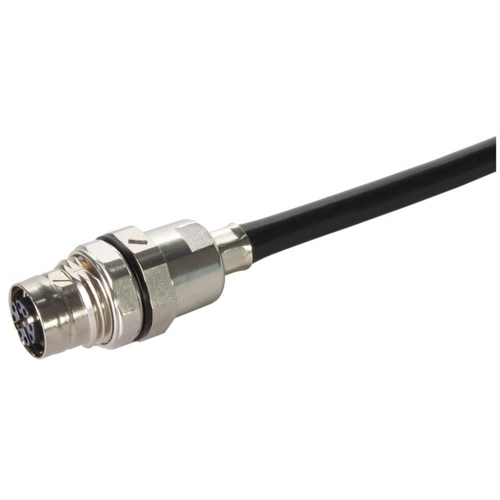

Cable connector, 21038812827, Harting
Cable connector, panel feed through, for rear mounting, female, X-coding, crimp termination, Liquid-crystal polymer (LCP), contacts: 8.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | jack | |
| Thread size | M12 | |
| Coding | X | |
| Degree of protection (IP) | IP65/IP67 | |
| Type of locking | screw lock/push-pull | |
| Orientation | straight | |
| Assembly | rear mounting | |
| Additional parts | unequipped | |
| Pin number | 8 pole | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
