21038812406 | Harting
Jack, M12, 4 pole, crimp connection, screw locking, straight, 21038812406
Order No.: 42P4001
EAN: 5713140225831
MPN:
21038812406
21 03 881 2406
Series: Circular connectors M12
Unit Price (€ / pc.)
20.8131 € *
Standard delivery time from the manufacturer is: 51 Weeks

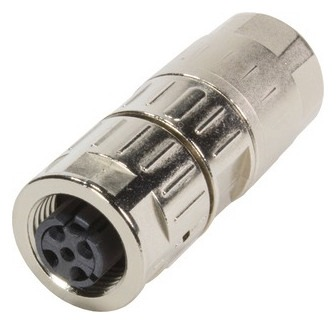

Cable connector, 21038812406, Harting
Cable connector, straight, female, D-coding, crimp termination, Liquid-crystal polymer (LCP), contacts: 4, Conductor cross-section: 0.13-0.82 mm², rated current: 4 A, Zinc die-cast, screw locking, Degree of protection: IP65 / IP67 mated condition.
Technical specifications
| Pin number | 4 pole | |
| Type of locking | screw locking | |
| Additional parts | unequipped | |
| Contact connection | crimp connection | |
| Product type | socket | |
| Coding | D | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67 | |
| Thread size | M12 |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
