21038811406 | Harting
Plug, M12, 4 pole, crimp connection, screw locking, straight, 21038811406
Order No.: 42P3981
EAN: 5713140225725
MPN:
21038811406
21 03 881 1406
Series: Circular connectors M12
Unit Price (€ / pc.)
21.3486 € *
Standard delivery time from the manufacturer is: On Request

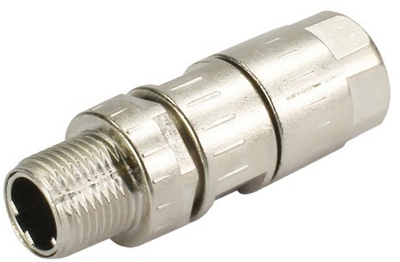

Cable connector, 21038811406, Harting
Cable connector, straight, male, D-coding, crimp termination, Liquid-crystal polymer (LCP), contacts: 4, Conductor cross-section: 0.13-0.82 mm², rated current: 4 A, Zinc die-cast, screw locking, Degree of protection: IP65 / IP67 mated condition.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | unequipped | |
| Degree of protection (IP) | IP65/IP67 | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Coding | D | |
| Thread size | M12 | |
| Product type | plug | |
| Contact connection | crimp connection | |
| Pin number | 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
