21038611825 | Harting
Plug, M12, 8 pole, crimp connection, screw lock/push-pull, straight, 21038611825
Order No.: 42P3971
EAN: 5713140227385
MPN:
21038611825
21 03 861 1825
Series: Circular connectors M12
Unit Price (€ / pc.)
28.441 € *
Standard delivery time from the manufacturer is: 51 Weeks

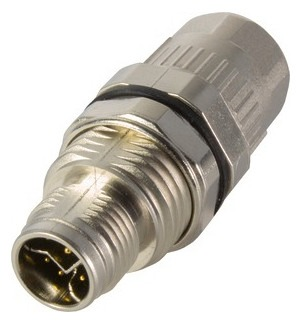

Cable connector, 21038611825, Harting
Cable connector, panel feed through, for rear mounting, male, Y-coding, crimp termination, Polyamide (PA), contacts: 8, Conductor cross-section: 0.13-0.82 mm² 0.08-0,25 mm² Data, rated current: 6 A, Zinc die-cast, screw locking, PushPull, Degree of protection: IP65 / IP67 mated condition.
Technical specifications
| Pin number | 8 pole | |
| Type of locking | screw lock/push-pull | |
| Additional parts | unequipped | |
| Contact connection | crimp connection | |
| Product type | plug | |
| Coding | Y | |
| Assembly | rear mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67 | |
| Thread size | M12 |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
