21038411525 | Harting

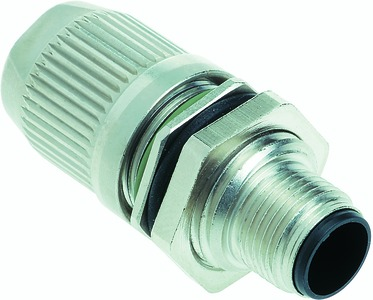

Plug, M12, 5 pole, crimp connection, screw locking, straight, 21038411525
Order No.: 45F0186
EAN: 4099889690354
MPN:
21038411525
21 03 841 1525
Series: Circular connectors M12
Unit Price (€ / pc.)
59.4048 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
59.40 € *
Price list
Quantity
Price per unit*
1 pcs.
59.4048 €
10 pcs.
52.2767 €
50 pcs.
48.7067 €
100 pcs.
47.2906 €
250 pcs.
45.4937 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 21038811830, HARTING
Features
- Crimp connection
- X-coded
- Pollution degree: 3
- Overvoltage category: II
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Type of locking | screw locking | |
| Contact connection | crimp connection | |
| Product type | plug | |
| Coding | B | |
| Assembly | rear mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67 | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
