21038212805 | Harting

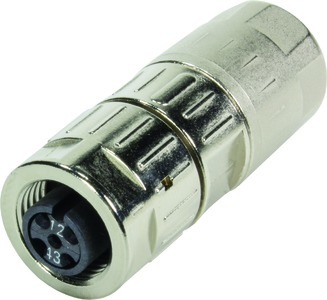

Jack, M12, 8 pole, crimp connection, screw locking, straight, 21038212805
Order No.: 45F0164
EAN: 4099889690217
MPN:
21038212805
21 03 821 2805
Series: Circular connectors M12
Unit Price (€ / pc.)
21.5390 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
21.54 € *
Price list
Quantity
Price per unit*
1 pcs.
21.5390 €
5 pcs.
20.5632 €
10 pcs.
19.9563 €
25 pcs.
18.5878 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 09151000403, HARTING
Features
- ComLock connector
- Degree of protection: IP67
- Made of: Copper-Zinc alloy
- RoHs-compatible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | jack | |
| Pin number | 8 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | crimp connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
