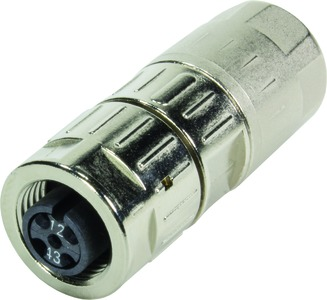

21038212505 | Harting
Jack, M12, 5 pole, crimp connection, screw locking, straight, 21038212505
Order No.: 45F0158
EAN: 4099889690170
MPN:
21038212505
21 03 821 2505
Series: Circular connectors M12
Unit Price (€ / pc.)
35.6524 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
35.65 € *
Price list
Quantity
Price per unit*
1 pcs.
35.6524 €
10 pcs.
31.3803 €
50 pcs.
29.2383 €
100 pcs.
28.3934 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 09151123101, HARTING
Features
- Crimp connection
- Pollution degree: 3
- Material flammability class to UL 94: V-0
- Made of: Polyamide
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65/IP67 | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Coding | A | |
| Thread size | M12 | |
| Assembly | cable assembly | |
| Product type | jack | |
| Contact connection | crimp connection | |
| Pin number | 5 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
