21035991515 | Harting

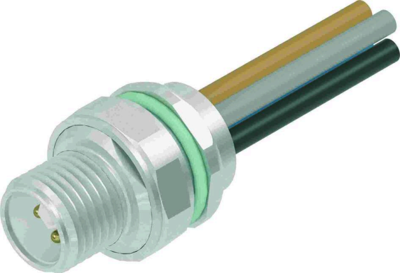

Panel plug, M12, 5 pole, screw locking, straight, 21035991515
Order No.: 42F9241
EAN: 5713140227699
MPN:
21035991515
21 03 599 1515
Series: Circular connectors M12
Unit Price (€ / pc.)
23.2169 € *
Standard delivery time from the manufacturer is: On Request
Sensor actuator connector, 21035991515, Harting
Panel feed through with conductors, for rear mounting, 30 cm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65/IP67 | |
| Coding | L | |
| Orientation | straight | |
| Assembly | rear mounting | |
| Additional parts | equipped | |
| Version | cable 0.3 m | |
| Pin number | 5 pole | |
| Type of locking | screw locking | |
| contact surface | nickel-plated/gold-plated | |
| Thread size | M12 | |
| Product type | panel plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
