21035961506 | Harting

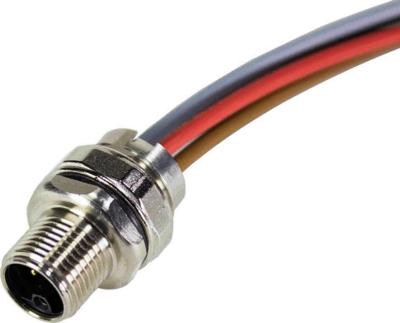

Panel plug, M12, 4 pole, screw locking, straight, 21035961506
Order No.: 42F9234
EAN: 5713140227583
MPN:
21035961506
21 03 596 1506
Series: Circular connectors M12
Unit Price (€ / pc.)
23.8357 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
23.84 € *
Price list
Quantity
Price per unit*
1 pcs.
23.8357 €
5 pcs.
22.7528 €
10 pcs.
22.0864 €
25 pcs.
20.5751 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator connector, 21035961506, Harting
Panel feed through with conductors, for rear mounting, 30 cm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Version | cable 0.3 m | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Coding | L | |
| Type of locking | screw locking | |
| Orientation | straight | |
| contact surface | nickel-plated/gold-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
