21033992401 | Harting

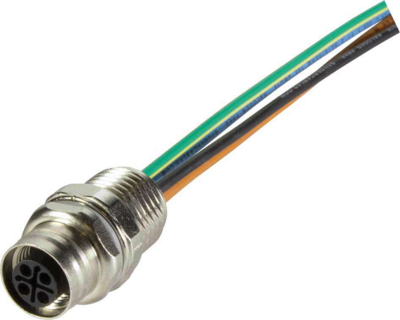

Panel socket, M12, 4 pole, crimp connection, screw lock/push-pull, straight, 21033992401
Order No.: 42F9232
EAN: 5713140227804
MPN:
21033992401
21 03 399 2401
Series: Circular connectors M12
Unit Price (€ / pc.)
22.9075 € *
Standard delivery time from the manufacturer is: On Request
Sensor actuator connector, 21033992401, Harting
Panel feed through with conductors, for rear mounting, 30 cm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Version | cable 0.3 m | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Coding | S | |
| Type of locking | screw lock/push-pull | |
| Orientation | straight | |
| Contact connection | crimp connection | |
| contact surface | nickel-plated/gold-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
