21033991402 | Harting

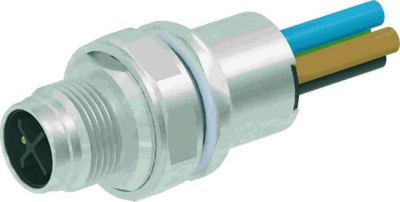

Panel plug, M12, 4 pole, crimp connection, screw lock/push-pull, straight, 21033991402
Order No.: 42F9231
EAN: 5713140227774
MPN:
21033991402
21 03 399 1402
Series: Circular connectors M12
Unit Price (€ / pc.)
23.0860 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
23.09 € *
Price list
Quantity
Price per unit*
1 pcs.
23.0860 €
5 pcs.
22.0388 €
10 pcs.
21.3962 €
25 pcs.
19.9206 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator connector, 21033991402, Harting
Panel feed through with conductors, for rear mounting, 30 cm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Version | cable 0.3 m | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Coding | S | |
| Type of locking | screw lock/push-pull | |
| Orientation | straight | |
| Contact connection | crimp connection | |
| contact surface | nickel-plated/gold-plated | |
| Additional parts | equipped | |
| Assembly | rear mounting | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
